Other Pumps

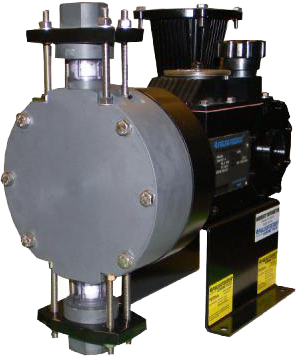

PULSAR Shadow Pumps are rugged and durable with on-board diagnostics; designed for extreme environments including outdoor services, elevated process and atmospheric heat, and aggressive installations including salt spray, humidity, and direct sunlight.

The PULSAR Shadow configuration is the ideal choice for sodium hypochlorite or other off-gassing and difficult to handle fluids.
pulsar hydraulic diaphragm pump

EASTERN Centrichem single-stage and multi-stage centrifugal pumps are designed for a wide variety of process industry applications and laboratory uses. They are designed for long and reliable service.

Each Centrichem pump is close coupled for greater strength. Their design eliminates the need for special base-plate mountings or complicated drives. Pump chambers, rear housings, covers and impellers are all precision castings to ensure that pump walls are smooth, which improves hydraulic efficiency. Generous clearance and the overhung shaft design enable these pumps to handle corrosive liquids containing low percentages of solids. Mechanical rotary seals make these pumps suitable for extensive applications with acids, alkalis, and solvents.

Eastern-Series-Centrichem
FIND A REP Product Literature

Pulsar Product Family:

Pulsar Shadow
Flow:

170 gph
(643 l/h)

Pressure:

305 psi
(21 bar)

EASTERN Centrichem Family:

Eastern ECC1
Flow up to:

54 gpm
(245.5 l/m)

Pressure* up to:

72 Feet
(21.9 Meters)

Eastern ECD1(6)
Flow up to:

6.5 gpm
(24.6 l/m)

Pressure* up to:

46 Feet
(14 Meters)

Eastern ECD1(9)
Flow up to:

9 gpm
(30 l/m)

Pressure* up to:

50 Feet
(15.25 Meters)

Eastern ECD1(20)
Flow up to:

20 gpm
(75.7 l/m)

Pressure* up to:

50 Feet
(15.25 Meters)

Eastern ECH1
Flow up to:

84 gpm
(318 l/m)

Pressure* up to:

93 Feet
(28.3 Meters)

Eastern ECH2
Flow up to:

84 gpm
(318 l/m)

Pressure* up to:

165 Feet
(50.3 Meters)

Eastern ECH3
Flow up to:

84 gpm
(318 l/m)

Pressure* up to:

235 Feet
(71.6 Meters)

Eastern ECH4
Flow up to:

84 gpm
(318 l/m)



Pressure* up to:

297 Feet
(90.53 Meters)
